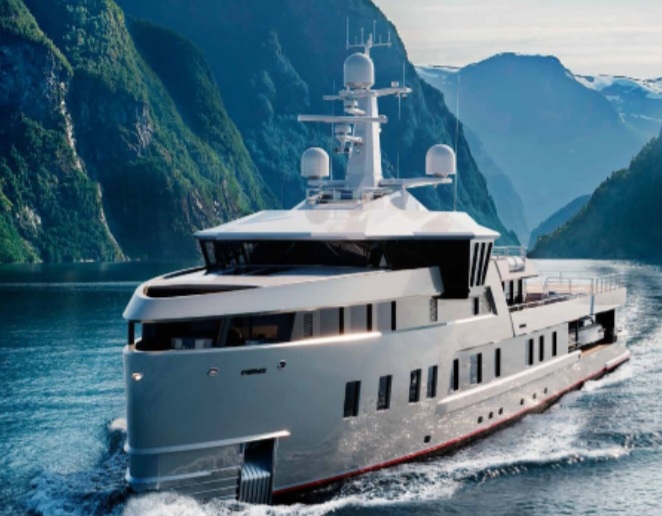

Basic functions Expedition Yacht Description The SeaXplorer 60 offers real expedition capability with 30 days of full luxury autonomy off-the-beaten-track and IMO Polar Code compliance. Portfolio SeaXplorer. Builder Damen Yachting. Naval Architecture Damen Yachting. Exterior Designer Azure Yacht Design. Interior Designer H2 Yacht Design. Length overall 60.10 meters (197 ft). Beam moulded 11.00 meters (36 ft). Draft summer (approx.) 3.60 meters (12 ft). Depth moulded 5.15 meters (17 ft). Gross tonnage 1160 GT. Trial speed (max.) 14.5 kn. Cruise speed 12.0 kn. Range @ 12 kn (approx.) 5000 Nm. Total Guest capacity 12 persons, including Owner. Total Crew & Staff 15 persons. The Vessel will be built under the supervision of and according to the Class notations of Lloyd's Register with the following notation. Notification 100 A1, SSC Yacht Mono G6 [ ] LMC, SCM, UMS, Ice Class 1D [Hull Flag state authorities Yacht will comply with the REG Yacht Code Part A as surveyed by CISR incl. Annex H of REGYC [Technical standards for helicopter landing areas]. Fuel oil 189.0 m³. Potable fresh water 36.0 m³. Gray & Black water 56.0 m³. Urea 7.0 m³. The Vessel is propelled by two diesel engines coupled with PTO/PTI. Main Engines 2x 1492 BkW. Generators 2x 248 ekW, 1x 110 ekW Emergency Generator. Hybrid Propulsion system 2x 150 eKW PTO/PTI on each shaftline. Battery Pack 2x 85 ekW Battery Pack for peak shaving. Bow Thruster 1x 200 ekW.

Stabilizers 2x Semi-retractable, Zero speed Quantum. Shore power converter 240 kVA. Dumbwaiter Serving Lower deck up to Upper deck. Passerelle Integrated passerelle for stern and alongside boarding on starboard side Fresh Water Makers 2x 12000 l/day. Main deck overhead cranes 4x Telescopic overhead sliding cranes, Safe Working Load (SWL) 2,500kg. Mooring equipment 2x HHP balanced anchor 765kg each, 2x Electrical anchor winch, 2x Capstan on aft deck.
